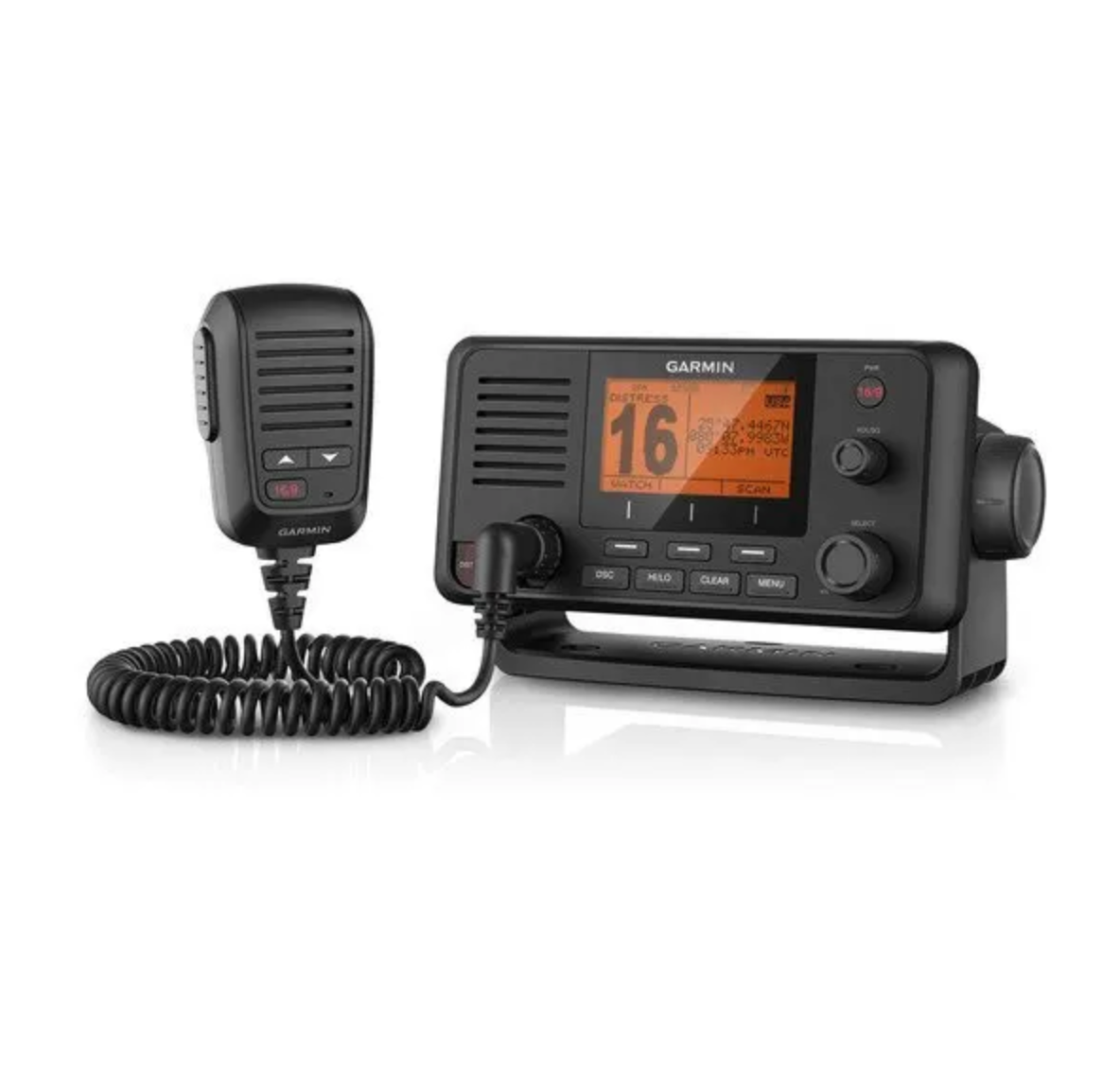

Garmin VHF 215 Marine Radio

By Garmin

AIS

No Yes

SKU: 010-02097-00

$549.99 USD

THIS PRODUCT IS NOT IN STOCK

Please expect up to a 1-week shipping delay as this item is shipped directly from the manufacturer.

FREE SHIPPING + 5% OFF

Use discount code: PREORDER for 5% OFF this item as a thank you for helping us build our Marine Product division.

QUESTIONS? Call Us: 949-535-4585

Lowest Price Guarantee

Free Shipping Continental US + Hawaii

Free 30 Day Returns & Exchanges

View details

Stay in Contact on the Water

Displays Automatic Identification System (AIS) (if applicable) on the chartplotter
Standard Class D Digital Selective Calling (DSC) functionality (distress calling and direct calling with user-programmed MMSI)
In case of trouble, DSC may improve your chances of a rapid rescue
25-watt transmit power with built-in GPS
Frequency bands include all U.S., Canadian and international marine channels plus 10 NOAA weather channels

Communication and situational awareness are critical on the water. This fixed-mount VHF 215 Garmin radio displays AIS (if applicable) on the chartplotter to enhance communication, situational awareness and collision avoidance between you and other mariners worldwide.

Increase Your Peace of Mind

During an emergency situation, the 25-watt transmit power of VHF 215 Garmin AIS gives fishermen, sailors and cruisers confidence at their fingertips.

Communicate Confidently on the Water

Easy to install and use, just plug and play to compatible Garmin chartplotters and MFDs via the NMEA 2000 network. VHF 215 Garmin AIS provides standard Class D DSC functionality (distress calling and direct calling with user-programmed MMSI). The radio includes frequency bands for all U.S., Canadian and international marine channels and 10 NOAA weather channels. It’s also NMEA 0183 network compatible and supports an optional foghorn and two-way hailer system for onboard communication.

Communicate with Style

Because your helm is a source of pride, the VHF 215 Garmin AIS™ marine radio is designed to complement the appearance of GPSMAP^® 7x2/9x2, GPMAP 10x2/12x2, GPSMAP 7400/7600 and GPSMAP 8400/8600 chartplotters and MFDs.

General Specs
UNIT SIZE	98 x 197 x 149 mm (3.9" x 7.8" x 5.8")
WEIGHT	Without microphone 42.8 oz (1.2 kg) With microphone 8.8 oz (0.25 kg)
OPERATING VOLTAGE	10.8 - 15.6 VDC
WATER RATING	IPX7
DISPLAY TYPE	monochrome FSTN LCD
OPERATING TEMPERATURE	–15° to 55° C (5° to 131° F)
INLAND WATERWAYS (ATIS)
MULTI-LANGUAGE INTERFACE

VHF Features
DUAL/TRI WATCH
NOAA WEATHER ALERT
LOUD HAILER
LOUDHAILER LISTEN BACK
INTERCOM SUPPORT

VHF Radio
REGION	All U.S., Canadian and International marine channels; NOAA weather channels
VHF FREQUENCY RANGE TX	156.025–162.025 MHz
VHF FREQUENCY RANGE RX	156.050 MHz to 163.275 MHz (including WX channels)
VHF TRANSMIT POWER (MAX)	25 W, 1 W (high, low)
TRANSMITTER FREQUENCY TOLERANCE	+/0.5 kHz
ADJACENT CHANNEL POWER	70 dB
SPURIOUS EMISSIONS	–80 dBc (at 25 W) / 0.25uW
SENSITIVITY (12 DB SINAD)	-118 dBm (-11 dBu/0.28 uV)
ADJACENT CHANNEL SELECTIVITY	70 dB
SPURIOUS RESPONSE	70 dB
VHF INTERMODULATION	68 dB
MAX ANTENNA GAIN	9 dBi

DSC
CLASS	Class D
SENSITIVITY (1% BER)	-113 dBm
ADJACENT CHANNEL SELECTIVITY	70 dB
SPURIOUS RESPONSE	70 dB
INTERMODULATION	68 dB

AIS Transponder Features
REMOTE STATION SUPPORT	GHS 11 (x1)

AIS
CLASS	AIS RX only
FREQUENCY RANGE	161.975 – 162.025 MHz
AIS SENSITIVITY (20% PER)	-107 dBm
ADJACENT CHANNEL SELECTIVITY	70 dB
SPURIOUS RESPONSE	70 dB
INTERMODULATION	65 dB
